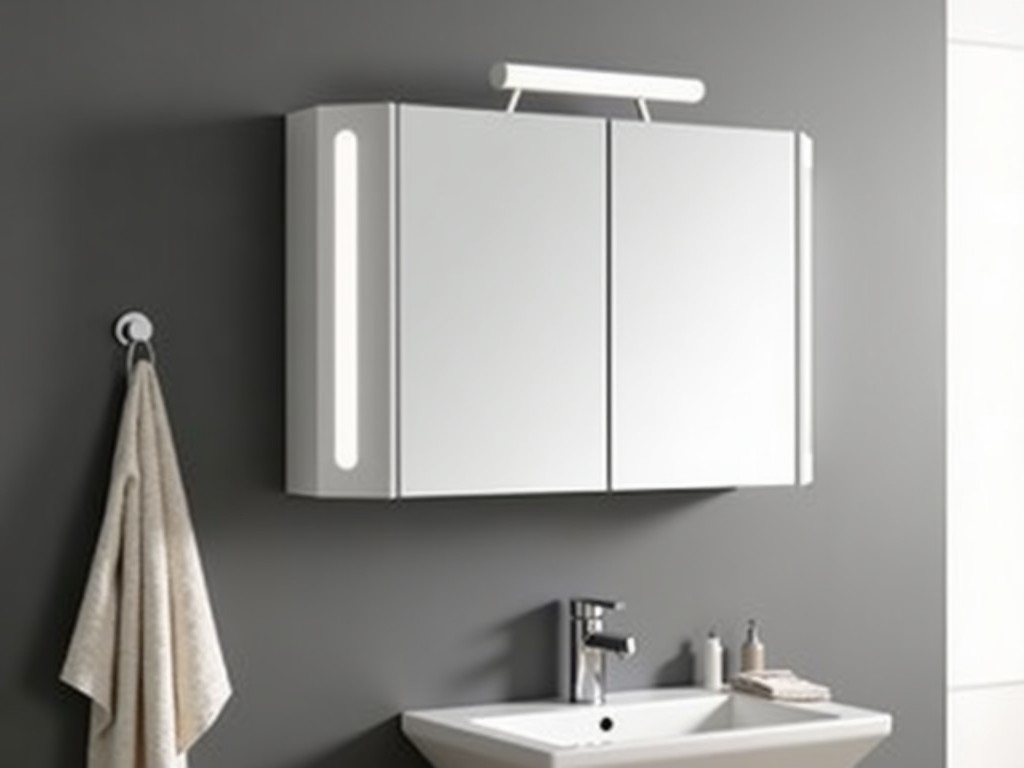

Factory Price Bathroom Wall Cabinet with Mirror

This fixture integrates a wall‑mounted storage compartment with a silver‑backed mirror, delivering both vertical storage and a reflective surface in a single unit.

The cabinet core is 18 mm moisture‑resistant MDF, with all edges sealed by 0.5 mm PVC heat‑sealed banding to prevent moisture ingress.

The mirror is 4 mm thick, copper‑free silver backing, available with optional anti‑fog nano‑coating or low‑voltage LED strip (IP44) for illuminated versions.

• Overall dimensions adjustable from 400 mm × 600 mm to 800 mm × 1000 mm (W × H) in 10 mm increments.
• Door swing 110° using concealed soft‑close hinges rated for 30 000 cycles.
• Interior shelf adjustable in 25 mm steps, supporting 15 kg uniformly distributed load.
• Optional LED strip (12 V, 5 W/m) with diffuser, operable via touch sensor.
• Anti‑fog coating reduces surface condensation by up to 80 % under 90 % RH.

Panels are machined on CNC routers with ±0.1 mm tolerance; edges are cleaned, primed, and PVC banding applied via hot‑air adhesion at 180 °C.

Mirrors are bonded to the door using UV‑curable adhesive achieving ≥2.5 MPa shear strength after 24 h cure, ensuring durability under cyclic humidity.

In hotel guest bathrooms the combined unit reduces wall‑depth requirement by approximately 150 mm per fixture, simplifying cleaning and lowering installation labor.

Healthcare installations benefit from non‑porous PVC edge banding and copper‑free mirrors, which tolerate frequent disinfection without degradation.

Material alternatives include 18 mm marine‑grade plywood for higher impact resistance or 1.2 mm stainless‑steel sheet for corrosive environments.

Finish choices range from matte HPL in neutral tones to glossy PVC foil with wood‑grain patterns, and powder‑coat options in any RAL colour.

Mirror upgrades: beveled edges (10 mm width), integrated LED strip (IP44), or anti‑fog nano‑coating.

Units are shipped flat‑packed in double‑wall corrugated cartons, each corner protected by 20 mm EPS inserts, with the mirror face covered by low‑adhesion PET film.

Cartons are palletized to a maximum height of 1.4 m, secured with PET straps, and each pallet includes a humidity indicator card for transit monitoring.

Standard lead time is 20‑25 working days after approved drawings and deposit; sample units can be ready within 5 working days for validation.

Sample costs are credited against the first order exceeding 10 units; shipping terms EXW or FOB are available on request.

Frequently Asked Questions

• Can dimensions be customized? Yes, width and height can be adjusted in 10 mm increments within the 400‑800 mm × 600‑1000 mm range.
• What information is required for a quotation? Required inputs: overall dimensions, selected cabinet material, finish type, mirror options (plain/beveled/anti‑fog/LED), hinge preference, and quantity.
• What materials are available for the cabinet body? Standard 18 mm moisture‑resistant MDF, optional marine plywood (18 mm), or 1.2 mm stainless‑steel sheet.
• How is quality inspected? Each unit undergoes dimensional check (±0.5 mm), mirror adhesion pull‑test (≥2.0 MPa), hinge cycle test (30 000 cycles), and visual inspection for finish uniformity.
• What packaging methods are available? Standard flat‑pack in corrugated cartons with EPS corner protection; optional wooden crate for overseas shipments.
• How are export shipments protected? Pallets are stretch‑wrapped, corner‑boarded, and fitted with humidity indicator cards; insurance can be arranged upon request.
• What is the typical production lead time? 20‑25 working days after drawing approval and deposit; express options available for an additional fee.
• How are samples arranged? Samples are produced from final tooling, shipped via express courier, and costs reimbursed on the first order exceeding 10 units.

For further technical details or to request a quotation, please contact our sales team.
