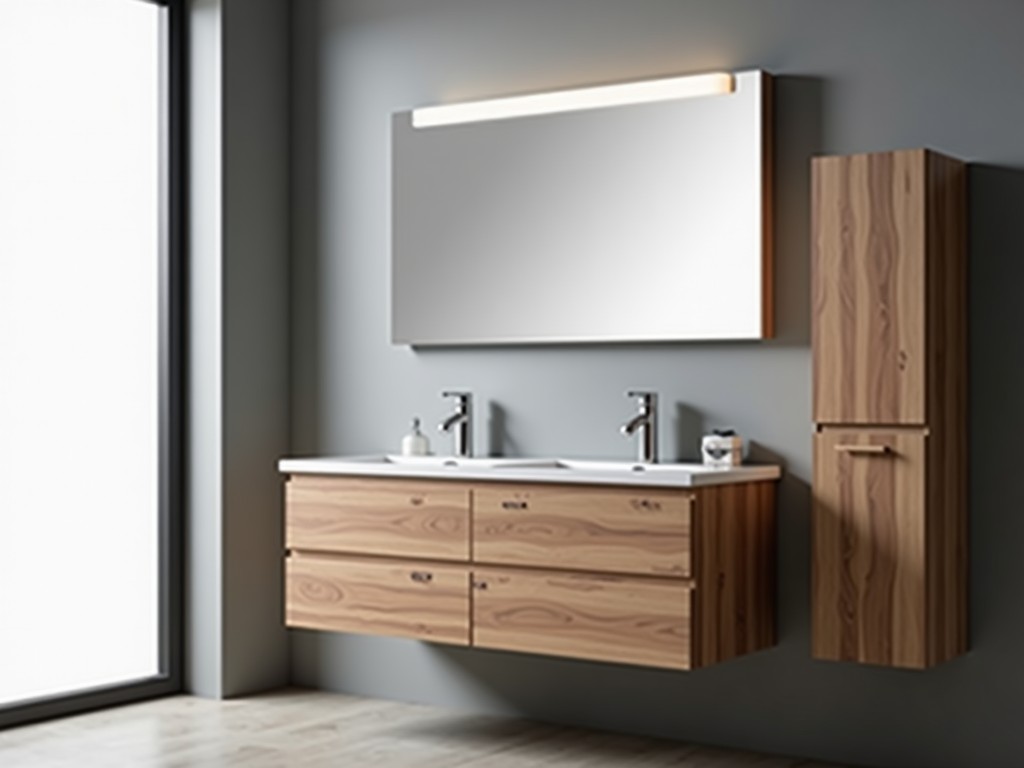

Factory Price Bathroom Vanity Mirror Cabinet

This product is a wall‑mounted storage unit that combines a mirrored door with internal shelving for toiletries. The design targets hotels, healthcare facilities, and high‑end residential projects where space efficiency and durability are required.

Technical Specifications

Key dimensions, material thicknesses, and performance ratings are defined to support engineering evaluation and installation planning.

Material Selection

The cabinet frame is constructed from extruded aluminum alloy 6063‑T5, providing a tensile strength of approximately 210 MPa and corrosion resistance suitable for humid environments. Mirror backing uses a copper‑free silver layer with a protective paint overcoat to prevent edge degradation. Shelves are made from 12 mm thick moisture‑resistant MDF with a melamine surface, offering a surface abrasion resistance of 150 cycles (Taber test).

Design and Configuration Options

Configurations are defined by door layout, internal accessories, and integrated electrical features to match specific project requirements.

• Single‑door layout (left‑hand or right‑hand hinge)
• Double‑door layout (symmetrical hinges)
• Integrated LED strip (12 V, 4000 K, CRI ≥ 80, IP44)
• Built‑in defogger (low‑voltage heating film, power consumption ≤ 5 W)
• Internal power outlet (rated 10 A, IEC 60320 C13)
• Adjustable glass shelf with chrome‑plated brackets

Applications in Commercial Facilities

In hotel guest bathrooms, the unit reduces countertop clutter while providing a high‑reflectance mirror for grooming. Healthcare settings benefit from the antimicrobial‑grade powder coat and easy‑to‑clean surfaces, supporting infection control protocols. For premium residential projects, the concealed hinges and optional LED lighting deliver a seamless aesthetic that aligns with modern interior design standards.

Quality Control and Testing

Each production lot undergoes dimensional verification (± 0.5 mm), mirror adhesion pull‑test (≥ 1.2 MPa), hinge cycle endurance (20 000 open‑close operations), and salt‑spray exposure (500 h, ISO 9227) to confirm suitability for wet environments. Finished units are inspected for surface finish uniformity (ΔE < 2) and electrical safety (low‑voltage leakage < 0.5 mA) where applicable.

Customization Process

Clients provide preliminary drawings or functional requirements; our engineering team reviews mirror size, door swing, and accessory integration. A CAD model is generated for approval, followed by prototype fabrication for fit‑check. Upon confirmation, tooling is adjusted and production proceeds with the agreed‑upon material specifications and finish.

Packaging and Shipping

Units are packed in triple‑wall corrugated cartons with internal polyethylene foam corners and a moisture‑barrier liner. Each carton includes a pallet‑compatible base and is secured with PET strapping. For export, cartons are marked with handling symbols (keep dry, this side up) and comply with ISPM‑15 wood‑packaging regulations when pallets are used.

Lead Time and Sampling

Standard lead time for stock‑size configurations is 3–4 weeks after receipt of purchase order. Custom sizes or special finishes typically require 6–8 weeks, inclusive of prototype approval. Sample units can be dispatched within 5–7 business days, with sample costs credited against the first production order.

Frequently Asked Questions

• Q: Can the mirror be supplied with an anti‑fog coating?
  A: Yes, a low‑voltage conductive film can be laminated to the mirror surface; power consumption is typically 4 W per square meter.
• Q: What information is required before a quotation?
  A: Required details include overall dimensions, door orientation, desired finish, any integrated electrical features, and quantity.
• Q: Are the hinges adjustable for door alignment?
  A: The concealed hinges provide three‑dimensional adjustment (± 1.5 mm lateral, ± 0.5 mm depth, ± 2° tilt) to accommodate wall variations.
• Q: How is quality inspected for bulk orders?
  A: Inspection follows ISO 2859‑1 sampling plan AQL 0.65 for critical dimensions and finish, with functional tests on 100 % of units for hinge operation and electrical safety.

Get a Quote

To receive a formal quotation, please provide your project specifications via the contact form.
