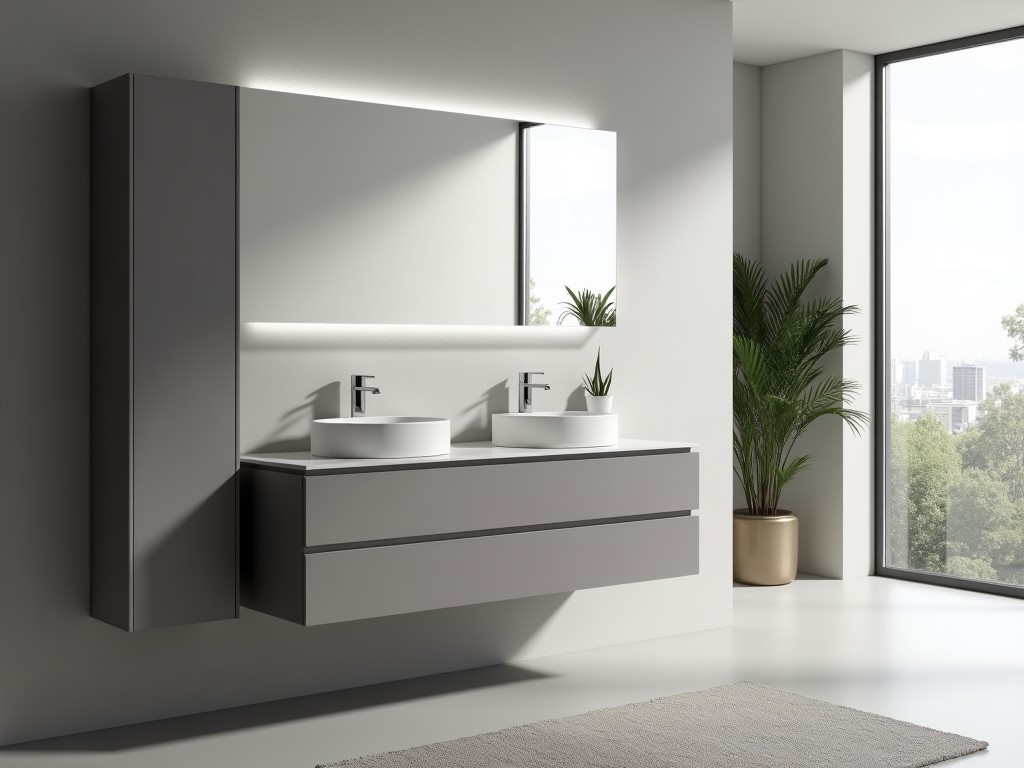

Direct Factory Light Grey Bathroom Cabinet
Direct Factory Light Grey Bathroom Cabinet
This cabinet is designed for wet‑area installations where dimensional stability and surface durability are critical. The core is manufactured from moisture‑resistant medium‑density fiberboard (MDF) with a minimum density of 650 kg/m³, providing resistance to swelling when exposed to typical bathroom humidity levels.
Technical Specifications
| Parameter | Typical Value |
|---|---|
| Overall Height (mm) | 800 – 2000 (customizable) |
| Overall Width (mm) | 400 – 900 (customizable) |
| Overall Depth (mm) | 200 – 500 (customizable) |
| Core Material | Moisture‑resistant MDF, 650 kg/m³ density |
| Panel Thickness (mm) | 16 mm (doors), 18 mm (carcase) |
| Finish | UV‑cured polyurethane coating, light grey RAL 9002, 60 µm dry film thickness |
| Hinge Type | Soft‑close concealed hinges, 100 000 cycle rating |
| Shelf Load Capacity (kg) | 15 kg per adjustable shelf, uniformly distributed |
| Water Resistance Rating | EN 12334‑2 Class 2 (suitable for indirect water splash) |
| Weight (kg) | Approx. 12 kg / m² of panel area |
Key Features
The substrate undergoes a vacuum‑pressed impregnation with a water‑repellent resin, reducing thickness swelling to less than 0.5 % after 24 h immersion at 20 °C, which meets the performance criteria for bathroom furniture.
Surface coating is applied via a roller‑coat line and cured under UV light, delivering a uniform gloss level of 20–30 GU and a surface hardness of 2H per pencil test, sufficient to resist typical cleaning agents.
Adjustable shelving uses steel brackets with a 5 mm vertical pitch, allowing load redistribution without tools; the brackets are zinc‑plated to withstand corrosion in humid environments.
Door edges are sealed with a 2 mm PVC edge band, providing a barrier against moisture ingress and delivering a seamless visual joint that matches the cabinet face.
Typical Applications
In hospitality projects, the cabinet’s consistent colour match across multiple units simplifies replacement scheduling, while its resistance to cleaning chemicals reduces maintenance cycles in high‑traffic guest bathrooms.
For residential renovations, the modular depth options enable integration with varying stud widths, allowing designers to maintain a flush wall appearance without custom framing.
Healthcare facilities benefit from the smooth, non‑porous surface that supports infection‑control protocols, as it can be wiped down with disinfectants without surface degradation.
Customization Options
- Overall dimensions: height, width, depth adjustable in 10 mm increments.
- Door style: slab, shaker, or framed with optional glass inserts.
- Interior accessories: pull‑out baskets, towel rails, integrated lighting.
- Hardware finish: brushed nickel, chrome, matte black, or custom PVD coatings.
- Colour variations: additional RAL or NCS shades available upon request.
Manufacturing & Quality Control
Each board undergoes thickness measurement at five points; tolerance is held within ±0.2 mm before lamination. After coating, gloss and adhesion are tested on a sample per batch, with adhesion required to exceed 2 MPa (cross‑cut test).
Finished units receive a functional test: doors are opened and closed 50 cycles to verify soft‑close operation, and shelf brackets are loaded to 120 % of rated capacity for 1 minute to confirm no permanent deformation.
Visual inspection is performed under 500 lux lighting; any surface defect larger than 0.5 mm is cause for rework. Packaging includes corner protectors and a polyethylene sleeve to guard against edge impact during transit.
Frequently Asked Questions
- Can the cabinet dimensions be altered to fit a niche?
- Yes, height, width, and depth are adjustable in 10 mm increments; provide the exact opening measurements for a quote.
- What is the lead time for a standard order?
- Typically 3–4 weeks after drawing approval, depending on current plant capacity and customization complexity.
- Is the cabinet suitable for direct water exposure such as a shower enclosure?
- The product meets EN 12334‑2 Class 2, which protects against indirect splash; for direct spray we recommend a marine‑grade variant available on request.
- What information is required to obtain a quotation?
- Please supply the desired dimensions, door style, hardware finish, interior accessories, and quantity; a sketch or DXF file speeds up the review.
- How are samples arranged?
- A sample panel (150 mm × 150 mm) with finish and edge band can be shipped via express courier; costs are credited against the first order.
Contact Us
For technical data sheets, pricing, or to discuss a custom specification, please reach out to our engineering team. We will respond within one business day with a detailed proposal and lead time confirmation.
