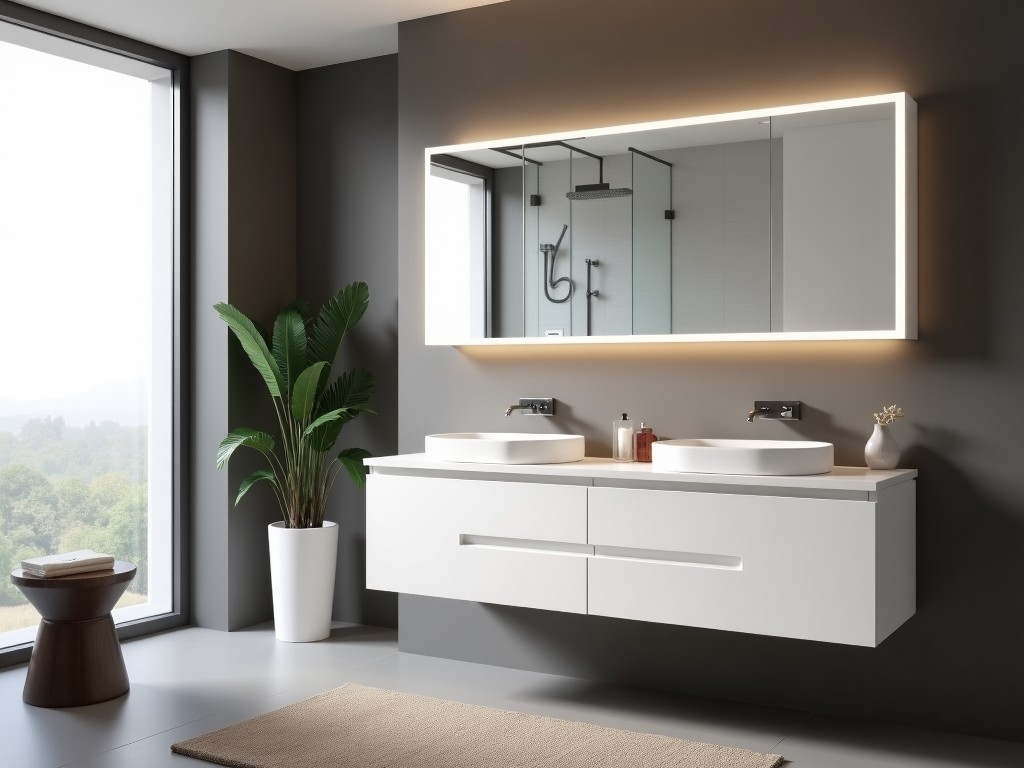

Direct Factory High Gloss Bathroom Cabinet

Product Overview

Manufactured directly at the factory, this bathroom cabinet eliminates intermediate handling, allowing tighter control over material consistency and lead times. The unit is built from moisture‑resistant substrate and finished with a UV‑cured acrylic coating that yields a measurable gloss level of 90 GU at 60°.

Construction and Materials

The carcass uses 18 mm moisture‑resistant medium density fibreboard (MR‑MDF) with a nominal density of 700 kg/m³, providing dimensional stability under fluctuating humidity. All edges are sealed with 0.8 mm PVC edge banding applied via hot‑melt adhesive, reducing moisture ingress to less than 0.2 % weight gain after 48 h exposure.

Option	Typical Value	Notes
Substrate	18 mm MR‑MDF	Density 700 kg/m³, thickness tolerance ±0.3 mm
Edge Band	0.8 mm PVC	Hot‑melt adhesion, peel strength >1.5 N/mm
Coating	UV‑cured acrylic	Film thickness 40 µm, gloss 90 GU (60°)
Hardness	2H pencil	ASTM D3363

Surface Finish Specifications

The UV‑cured acrylic film is cured at 120 °C for 8 seconds, resulting in a cross‑linked hardness of 2H pencil and a gloss measurement of 90 GU (±2 GU) according to ASTM D523. Chemical resistance testing shows no visible change after 24 h immersion in 5 % sodium hypochlorite solution.

Dimensional Tolerance and Modularity

Standard modules are offered in 600 mm width, 800 mm height, and 500 mm depth, with a cumulative tolerance of ±0.5 mm on each axis. The system increments in 100 mm steps, allowing designers to configure wall‑mounted or floor‑standing layouts without custom fabrication.

• Width: 600 mm (±0.5 mm)
• Height: 800 mm (±0.5 mm)
• Depth: 500 mm (±0.5 mm)
• Door overlay: 18 mm (±0.2 mm)

Water and Humidity Resistance

The assembled cabinet meets an IP44 rating for protection against splashing water from any direction, verified per IEC 60529. After 48 h exposure to 95 % relative humidity at 30 °C, the substrate exhibits a thickness swell of less than 0.2 % and no delamination of the edge band.

Customization Options

• Overall dimensions adjustable in 100 mm increments (width, height, depth)
• Door configuration: hinged, sliding, or bi‑fold with optional soft‑close hinges (torque 0.25 Nm)
• Handle types: integrated finger pull, chrome‑plated bar, or recessed pocket (pull‑out force 5 N)
• Interior accessories: adjustable shelving (load capacity 15 kg per shelf), LED strip lighting (12 V, 4.8 W/m), motion sensor switch
• Finish colors: standard white (RAL 9010) or custom RAL/Pantone matches upon request

Quality Assurance and Testing

Each unit undergoes inline inspection: gloss meter verification (±2 GU), coating thickness gauge (±2 µm), adhesion cross‑hatch test (ASTM D3359, rating 5B), and dimensional check with calibrated calipers. Final audit includes a 2‑hour condensation cycle to confirm no blushing or delamination.

Test	Method	Acceptance Criteria
Gloss	ASTM D523 (60°)	90 GU ±2
Coating Thickness	Magnetic induction gauge	40 µm ±2 µm
Adhesion	ASTM D3359 (cross‑cut)	5B (no removal)
Dimensional Accuracy	Caliper measurement	±0.5 mm
Humidity Resistance	48 h @ 95 % RH, 30 °C	Swelling <0.2 %

Applications in Commercial and Residential Projects

Because the coating resists common bathroom chemicals and the substrate resists swelling, the cabinet is suited for high‑traffic hotel guest rooms, healthcare facilities where frequent disinfection occurs, and luxury residential bathrooms that require a seamless, easy‑to‑clean surface. The modular system enables rapid reconfiguration during refurbishment without replacing the entire unit.

Packaging and Logistics

• Flat‑packed in 5‑mm corrugated cartons with corner protectors
• Interior cushioning: expanded polyethylene (EPE) foam, thickness 10 mm
• External wrapping: shrink‑film pallet cover for moisture protection
• Pallet size: 1100 mm × 1100 mm, maximum stack height 1.8 m
• Labeling includes QR code linking to product data sheet and installation guide

Frequently Asked Questions

• Can dimensions be customized? Yes, adjustments in 100 mm increments are available; bespoke sizes require engineering review.
• What information is needed for a quotation? Required details include overall width, height, depth, door style, handle type, interior accessories, and finish colour (RAL or custom).
• What materials are offered for the substrate? Standard is 18 mm MR‑MDF; optional marine‑grade plywood or PVC‑foam board are available upon request.
• How is quality inspected? Inline gloss, thickness, adhesion, and dimensional checks as described in the Quality Assurance section.
• What packaging methods protect against transit damage? Flat‑pack cartons with EPE foam corner guards and shrink‑wrapped pallets.

Request a Quote

To receive a detailed quotation and lead‑time estimate, please provide your project specifications via the contact form.
