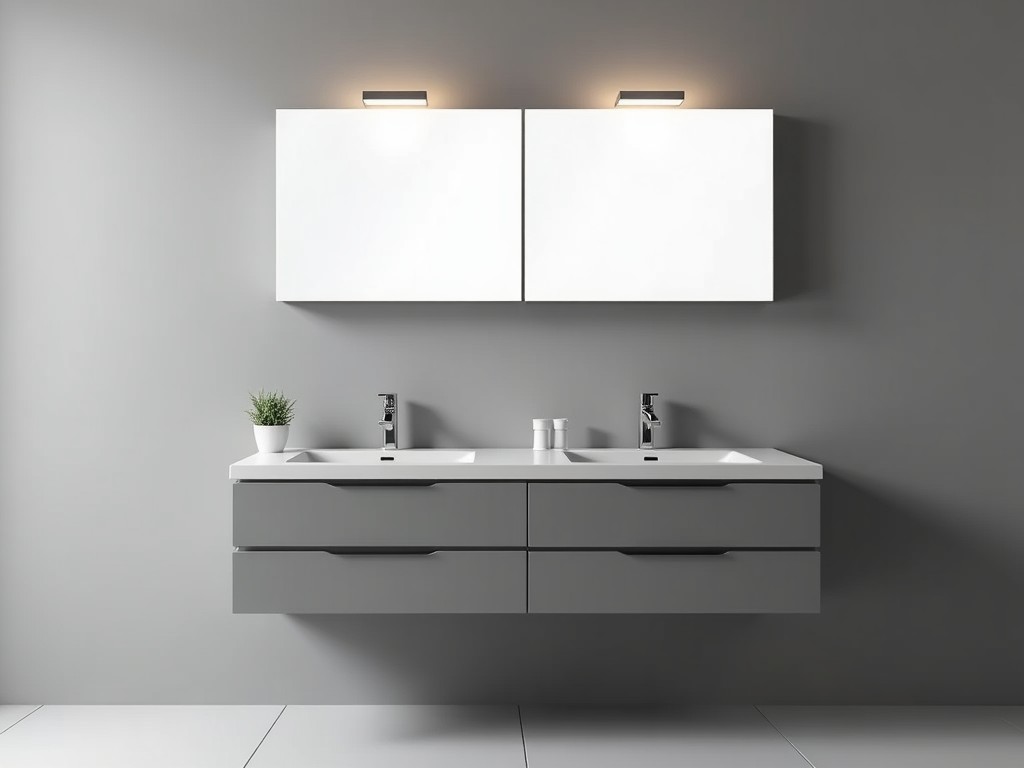

Custom Factory Grey Wall Hung Bathroom Vanity Unit
Custom Factory Grey Wall Hung Bathroom Vanity Unit
Wall‑hung vanities eliminate floor contact, reducing moisture ingress and simplifying cleaning routines in high‑traffic wet areas. By mounting the unit directly to a reinforced substrate, the design transfers load to the wall structure rather than the floor slab, which is advantageous in retrofit projects where floor loading capacity is limited.
Typical overall dimensions range from 600 mm to 1200 mm width, 450 mm to 550 mm depth, and 500 mm to 600 mm height, with a nominal carcass thickness of 18 mm. The unit is engineered to support a static load of up to 150 kg distributed across the countertop, accommodating vessel sinks, integrated basins, or solid‑surface tops without deflection exceeding 0.5 mm under load.
Core material options include moisture‑resistant MDF (E1 grade), birch plywood (≤ 5 % voids), and marine‑grade plywood for environments with prolonged water exposure. Surface finishes are available in melamine, PVC edge banding, or UV‑cured acrylic lacquer, each providing a consistent grey hue (RAL 7035‑7045) with a surface hardness of ≥ 2H pencil rating.
Customization encompasses width adjustments in 50 mm increments, optional integrated overflows, pre‑drilled faucet holes (standard 35 mm spacing), and a selection of hardware such as soft‑close hinges (≤ 25 mm opening angle) and concealed wall brackets rated for 200 kg shear load. Additional features like LED lighting channels (12 V, IP44) or antimicrobial coating can be specified per project requirements.
Applications extend beyond residential bathrooms to hospitality guest rooms, healthcare facilities, and commercial washrooms where wall‑mounted fixtures reduce floor‑space clutter and facilitate ADA‑compliant clearances. The lightweight yet rigid construction enables rapid installation on stud walls, concrete masonry, or steel framing without additional sub‑flooring reinforcement.
Quality control follows a three‑stage protocol: incoming material inspection (dimensional tolerance ± 0.5 mm, moisture content < 12 %), in‑process checks (joint glue line integrity, edge band adhesion > 1.5 MPa), and final assembly verification (load test to 150 kg, alignment tolerance ≤ 1 mm). Non‑conforming items are segregated and reworked before packaging.
| Parameter | Typical Value | Notes |
|---|---|---|
| Width | 600‑1200 mm | Customizable in 50 mm steps |
| Depth | 450‑550 mm | Depends on sink type |
| Height | 500‑600 mm | Includes countertop thickness |
| Carcass Thickness | 18 mm | MDF/plywood core |
| Load Rating | ≤ 150 kg | Uniformly distributed |
| Finish Hardness | ≥ 2H | Pencil test |
Frequently asked questions from procurement teams include:
- Can the vanity width be adjusted to match existing stud spacing?
- What material certifications are available for moisture resistance?
- How are wall brackets tested for shear and pull‑out capacity?
- What lead time applies for a fully customized order?
- Are samples available for finish verification?
For technical data sheets, custom quotation, or to arrange a sample shipment, please contact our engineering team via the inquiry form.
Submit Inquiry
