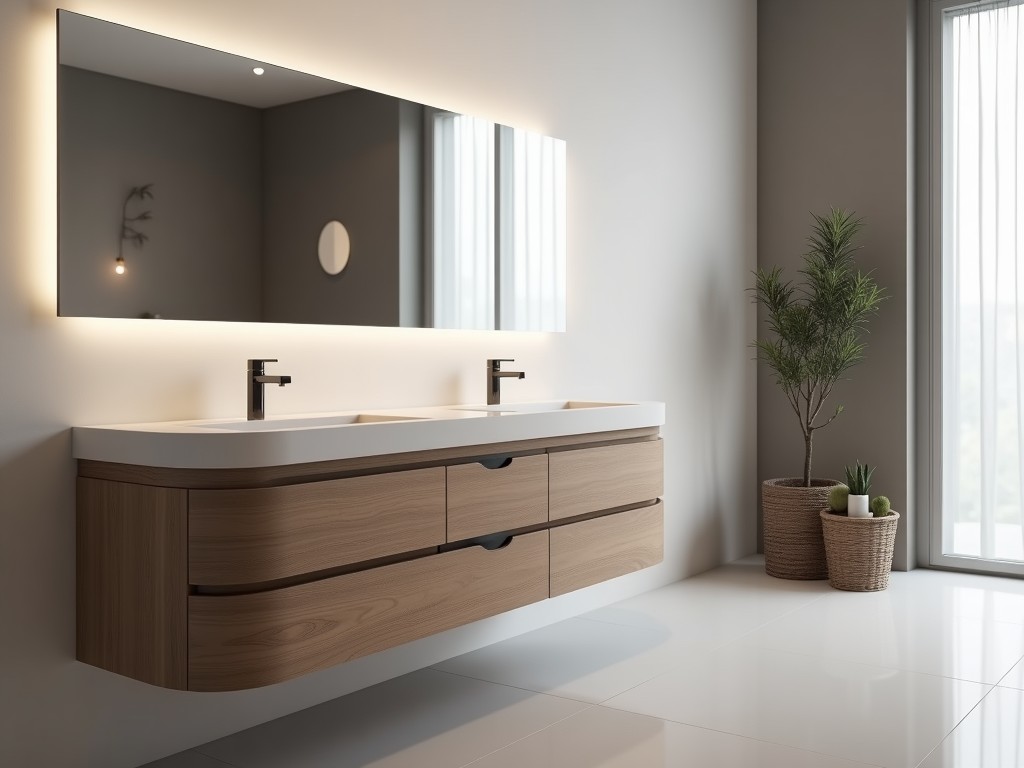

Curved Wall Hung Bathroom Vanity Units

The curved profile integrates a continuous radius from the countertop edge to the underside of the basin, eliminating sharp corners that can trap moisture and simplify cleaning in high‑traffic environments.

Design and Geometry

A typical unit features a 150 mm radius sweep that extends 600 mm horizontally from the wall mounting bracket, providing ergonomic clearance for users while maintaining a compact footprint.

Wall‑mount brackets are engineered to accommodate M10 stainless steel bolts spaced at 300 mm intervals, distributing load across two load‑bearing studs per bracket for a rated static capacity of 250 kg per unit.

• Countertop thickness options: 12 mm, 18 mm, or 25 mm solid surface.
• Basin depth range: 140 mm to 180 mm, compatible with standard overflow configurations.
• Front edge chamfer: 3 mm × 3 mm to reduce impact damage.

Structural Engineering

Material Selection

Solid surface composites (acrylic‑modified polyester) provide a non‑porous, homogeneous mass that resists chemical staining from common bathroom agents such as sodium hypochlorite and acetic acid.

Alternative material grades include:

• Grade A: 100 % acrylic, UV‑stabilized, suitable for direct sunlight exposure.
• Grade B: 70 % acrylic / 30 % polyester blend, cost‑effective for interior‑only installations.
• Grade C: Recycled content ≥30 %, meeting LEED MRc4 requirements.

All substrates undergo a post‑cure anneal at 80 °C for 2 hours to relieve internal stresses, reducing the risk of micro‑cracking under thermal cycling.

Applications in Commercial Projects

In hospitality suites, the continuous curve eliminates grout lines where mildew typically forms, lowering maintenance cycles by an estimated 30 % compared with rectangular vanities.

Healthcare facilities benefit from the seamless surface, which meets ISO 14644‑1 Class 7 cleanroom compatibility when paired with appropriate sealants, supporting infection control protocols.

Educational institutions specify the unit for its impact‑resistant front edge, which withstands accidental cart collisions without chipping, thereby extending service life in high‑usage restrooms.

Customization Options

• Radius adjustment: 100 mm to 200 mm in 10 mm increments to suit specific ergonomic layouts.
• Integrated LED lighting channel: 12 mm deep recess along the underside, powered by 24 V DC drivers.
• Hardware finishes: brushed nickel, matte black, or PVD‑coated chrome, each rated for 500 hour salt spray resistance.
• Back‑panel cutouts for service access: configurable to accommodate plumbing or electrical conduits up to 50 mm diameter.

Custom dimensions are quoted based on material utilization rates; typical lead time increases by 5‑7 days for non‑standard radii.

Quality Control and Testing

Each batch undergoes dimensional verification using a coordinate measuring machine (CMM) with a tolerance of ±0.2 mm on critical radii and mounting hole positions.

Surface hardness is assessed via Shore D testing; target values range from 80  to 85  for solid surface grades, ensuring scratch resistance under normal use.

Water ingress protection is validated by IPX4 spray testing, confirming that no moisture penetrates the substrate‑sealant interface after 10 minutes of 10 L/min spray at 3 bar pressure.

Packaging and Shipping

Units are packed in double‑wall corrugated cartons with internal corner protectors and a 5 mm polyethylene foam layer, providing a drop test rating of 1.2 m per ISTA‑3A standards.

Pallet configuration: 20 units per pallet (1.2 m × 1.0 m base), secured with PET strapping and stretch film, enabling efficient container loading for overseas shipments.

Each package includes a QR code linking to the installation manual, torque specifications for mounting brackets, and recommended sealant compatibility chart.

Lead Time and Sample Procurement

Standard production lead time is 3‑4 weeks from receipt of approved technical drawings and material selection.

Sample units (up to two variants) can be dispatched within 7‑10 business days, shipped via express courier with protective packaging; sample costs are credited against subsequent orders.

For projects requiring just‑in‑time delivery, a buffer stock program is available, allowing pre‑qualified SKUs to be held in regional warehouses for 2‑week call‑off.

Frequently Asked Questions

Can dimensions be customized?

Yes, the radius, overall width, and countertop thickness are adjustable per project requirements; detailed CAD files are needed for quotation.

What information is required before quotation?

We require a layout sketch indicating wall stud locations, desired basin model, material grade, and any optional features such as lighting or cutouts.

What materials are available?

Acrylic‑modified polyester solid surface in three grades (A, B, C) with optional UV stabilization and recycled content.

How is quality inspected?

Dimensional checks via CMM, Shore D hardness testing, and IPX4 water ingress verification are performed on every production lot.

What packaging methods are available?

Standard double‑wall cartons with foam protection; palletized options for bulk orders; custom crating available upon request.

How are export shipments protected?

Cartons meet ISTA‑3A standards; additional moisture barrier liners and corner reinforcements are applied for long‑haul sea freight.

What is the typical production lead time?

3‑4 weeks for standard configurations; 5‑7 weeks for non‑standard radii or integrated lighting.

How are samples arranged?

Request via our contact portal; samples ship within 7‑10 business days with return credit applicable to confirmed orders.
