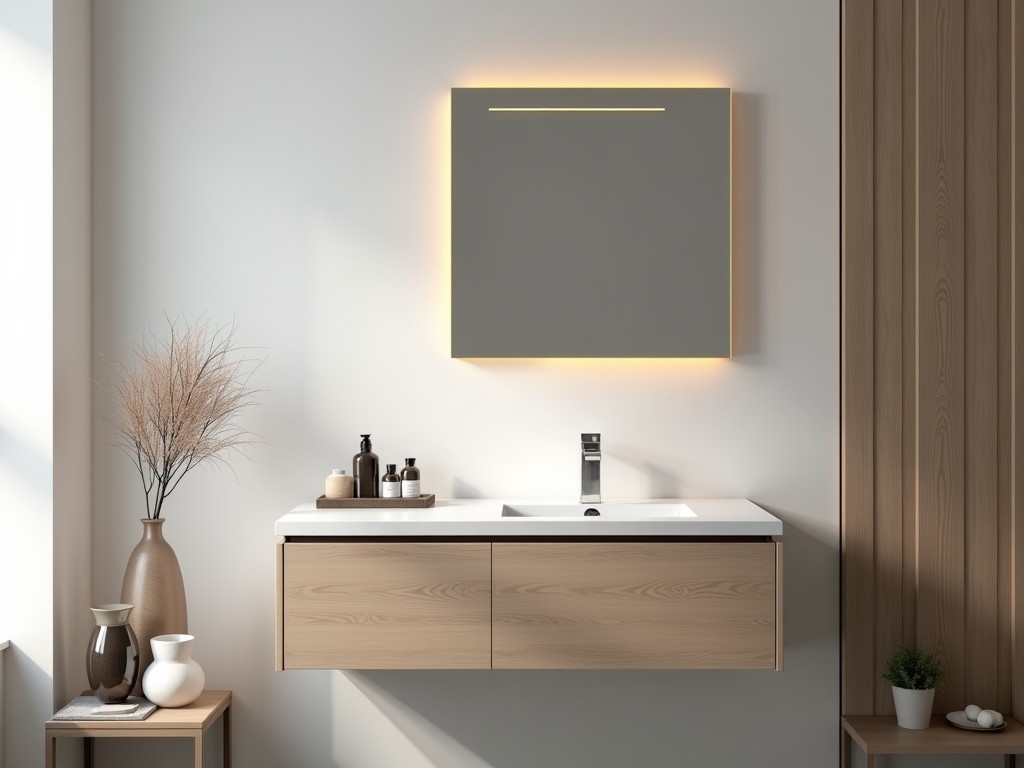

China Small Wall Mounted Bathroom Mirror Cabinet
China Small Wall Mounted Bathroom Mirror Cabinet
This product line addresses the need for compact storage solutions in bathrooms where floor space is limited. The cabinet combines a mirrored front with internal shelving, allowing users to store toiletries while maintaining a reflective surface for grooming.
Overview
Typical units range from 400 mm to 600 mm in width and 600 mm to 800 mm in height, with a depth of 120 mm to 150 mm when closed. The door opens outward or upward depending on the hinge configuration, providing access to one or two adjustable glass shelves.
Design and Construction
The cabinet frame is formed from extruded aluminum profiles with a powder‑coated finish, providing corrosion resistance in humid environments. The mirror panel uses 5 mm tempered glass with a silver backing and a protective film to reduce splintering risk. Door hinges are concealed soft‑close units rated for 30,000 cycles.
- Reinforced corner brackets increase racking resistance to 150 N.
- Internal shelves are 4 mm tempered glass with polished edges.
- A magnetic catch holds the door closed when not in use.
Materials and Finishes
| Component | Typical Material | Finish Options |
|---|---|---|
| Frame | Extruded Aluminum Alloy 6063 | Matte White, Brushed Nickel, Powder‑Coated Gray |
| Mirror Panel | 5 mm Tempered Glass | Silver Back, Anti‑Fog Coating (optional) |
| Door Hinge | Stainless Steel 304 | Concealed Soft‑Close |
| Interior Shelf | 4 mm Tempered Glass | Clear, Frosted Edge |
Dimensions and Specifications
| Parameter | Typical Range | Unit |
|---|---|---|
| Overall Width | 400 – 600 | mm |
| Overall Height | 600 – 800 | mm |
| Depth (Closed) | 120 – 150 | mm |
| Door Opening Angle | 90 – 110 | degrees |
| Shelf Load Capacity | 5 – 8 | kg per shelf |
| Net Weight | 4 – 7 | kg |
Installation and Mounting
The cabinet is designed for direct wall stud mounting using two M8 stainless steel bolts supplied with plastic anchors for drywall applications. A leveling bracket on the rear ensures vertical alignment within ±2 mm. Electrical wiring for optional LED lighting can be routed through a recessed channel in the back panel.
Installation time averages 15 minutes per unit when performed by a qualified tradesperson. The mounting hardware provides a shear resistance of 250 N, sufficient for dynamic loads encountered in daily use.
Applications
Small wall mounted mirror cabinets are commonly selected for ensuite bathrooms in hotels, guesthouses, and residential apartments where floor‑standing vanities would impede circulation. The mirrored front amplifies perceived space, while the enclosed storage protects contents from moisture and splashes.
In healthcare facilities, the unit provides a hygienic storage option for personal care items, with smooth surfaces that facilitate cleaning and disinfection protocols.
Quality Assurance
Each production lot undergoes dimensional inspection using calibrated CMM equipment, verifying critical features such as mirror flatness (< 0.02 mm deviation over 100 mm) and hinge torque (0.18 Nm ± 0.02 Nm). Visual inspection checks for coating uniformity and edge quality under 500 lux illumination.
Functional testing includes 5,000 open‑close cycles at a rate of 10 cycles per minute, followed by a salt‑spray exposure of 48 hours to validate corrosion resistance of the aluminum frame.
Customization Options
- Mirror dimensions adjustable in 10 mm increments.
- Frame color matched to RAL or Pantone specifications.
- Integration of LED strip lighting with IP44 rating.
- Alternative door configurations: side‑hinged, top‑hinged, or sliding.
- Internal accessories such as magnetic strips, cosmetic organizers, or shaver sockets.
FAQ
- Can dimensions be customized? Yes, width, height, and depth can be adjusted within standard structural limits; contact sales for exact feasibility.
- What information is required before quotation? Desired overall dimensions, finish selection, lighting option, and quantity.
- What materials are available for the frame? Extruded aluminum 6063 with powder‑coat or anodized finishes; stainless steel 304 available upon request.
- How is quality inspected? Dimensional checks via CMM, hinge torque testing, and 48‑hour salt‑spray corrosion validation.
- What packaging methods are available? Each unit is packed in a single‑wall corrugated box with corner protectors and polyethylene foam; palletization available for bulk orders.
- What is the typical production lead time? 15‑20 working days for standard configurations; customized orders may require an additional 5‑7 days.
Contact for Inquiry
For technical data sheets, sample requests, or formal quotations, please reach out using the link below.
