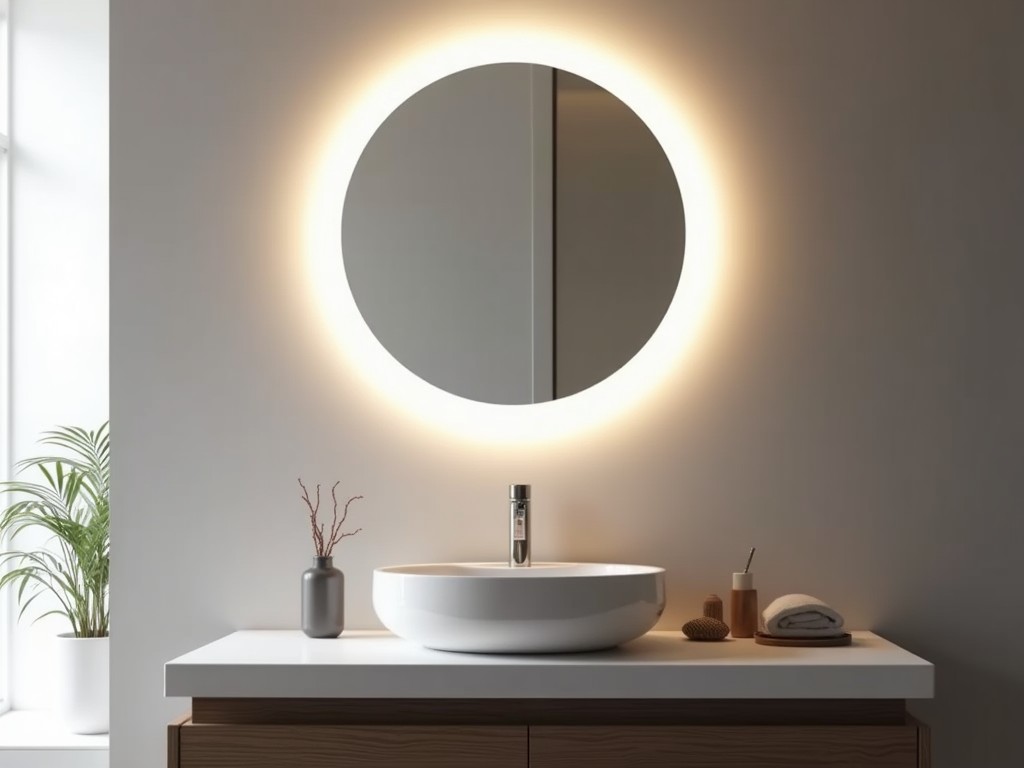

China Round Bathroom Mirror Cabinet

Overview

A round bathroom mirror cabinet integrates a reflective surface with enclosed storage, suited for environments where humidity, cleaning agents, and space constraints demand a sealed, corrosion‑resistant unit.

The circular geometry eliminates sharp corners, reducing impact risk in tight layouts while providing a uniform field of view.

Dimensions and Configuration

Standard diameters range from 500 mm to 800 mm in 50 mm increments, with cabinet depths between 100 mm and 150 mm to accommodate toiletries without protruding excessively from the wall.

Interior layout typically includes two adjustable glass shelves, each supporting up to 5 kg, and a recessed cavity for optional electrical components.

Materials and Construction

The frame is manufactured from either extruded aluminum alloy (6063‑T5) with a minimum wall thickness of 1.2 mm or marine‑grade stainless steel (AISI 304) for higher chemical exposure.

Mirror substrates are copper‑free silver‑coated glass, laminated with a safety backing film that meets EN 12150‑1 impact resistance, reducing the risk of sharp fragments upon breakage.

Hinges and drawer slides are constructed from POM‑based polymers, selected for low moisture absorption and a rated cycle life of 50 000 operations.

Mounting and Installation

The unit is secured via four concealed Z‑brackets that distribute load across the wall studs, each bracket rated for a static load of 80 kg, ensuring stability even when the cabinet is fully loaded.

A leveling system with ±2 mm adjustment compensates for wall irregularities, maintaining door alignment within 0.5 mm tolerance.

Electrical Features (Optional)

When specified, an IP44‑rated LED strip runs along the inner perimeter, delivering 300 lx at the mirror surface with a color temperature adjustable between 3000 K and 6000 K via a external driver.

An optional demister pad (12 V, 40 W) raises the glass temperature by 8–10 °C to prevent condensation, controlled by a humidity‑sensing switch with a 5‑minute delay.

Surface Finish and Corrosion Resistance

Aluminum frames receive a two‑stage pretreatment (alkaline degreasing, chromate conversion) followed by electrostatic powder coating (epoxy‑polyester) with a dry film thickness of 80 µm, achieving a salt‑spray endurance of 500 hours per ASTM B117.

Stainless steel variants are passivated and optionally brushed to a Ra 0.8 µm finish, providing comparable resistance without additional coating.

Applications

In hospitality settings, the round profile minimizes snag hazards in high‑traffic corridors while the concealed storage reduces visual clutter, supporting brand‑consistent aesthetics.

Healthcare facilities benefit from the seamless, easy‑to‑clean surfaces and the antimicrobial coating options that inhibit biofilm growth on high‑touch areas.

Luxury residential projects specify the unit for its ability to integrate ambient lighting and defogging without compromising the minimalist design language of modern bathrooms.

Quality Assurance

Each production lot undergoes a three‑stage inspection: (1) visual assessment of mirror coating uniformity under 500 lux illumination, (2) adhesion test of the safety film per ISO 2409, and (3) functional cycling of doors and shelves for 5 000 repetitions to verify hinge performance.

Dimensional verification is performed using a CMM with a repeatability of ±0.02 mm, ensuring that the radius deviation remains within ±0.5 mm of the nominal value.

Customization Options

Clients may specify non‑standard diameters, alternative shelf configurations (e.g., pull‑out trays), or integrated touch‑sensor switches that control lighting and demister functions.

Lead times for customized units typically range from 4 to 6 weeks after approval of final drawings, subject to material availability and finish selection.

Frequently Asked Questions

Call to Action

For technical datasheets, sample requests, or to discuss project‑specific requirements, please contact our engineering team.
